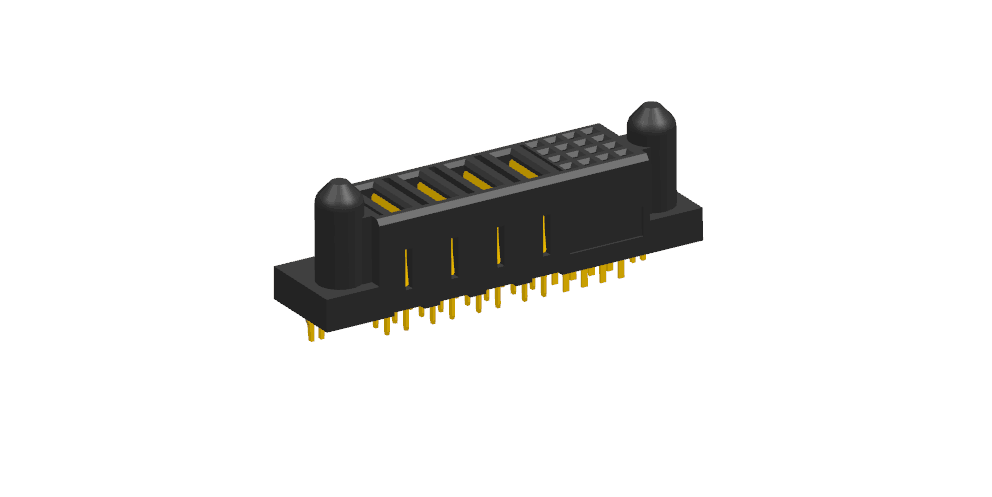

4P power+20P signal 6.35mm female terminal block 180-degree plug-in power signal connector

Product spacing: 6.35mm for electric power; Signal 2.54mm
Product material: PA46 30% fiber black UL94V-0
EU RoHS Directive: in line with (2011/65/EU) requirements
EU REACH Regulation: without REACH SVHC (1907/2006/EC)
EU ELV Directive: in compliance with the requirements of 2000/53/EC

Hotline：+86-755-2991 2370

Download
Feedback

Product introduction

Type
Type	Power signal combination connector
Spacing	Power 6.35mm; Signal 2.54mm
Installation method	180 degrees
Number of poles	4P power 20P signal
Electrical
Maximum current per contact	Signal 3A; Power supply 30A
Rated voltage	Signal 60V; Power supply 250V
Contact resistance	10mΩ Max
Insulation resistance	500M Ω Min between signals; 1000M Ω Min between power supply and signal, power supply and power supply
Withstand voltage	1000V AC/minute
Operating temperature range	-40ºC~ 125ºC
Material Science
Shell color	black
Metal material	Phosphorous copper
Plating	Surface gold/tin plating
Plastic material	PA46 30% fiber
Flame retardant grade	UL94V-0
